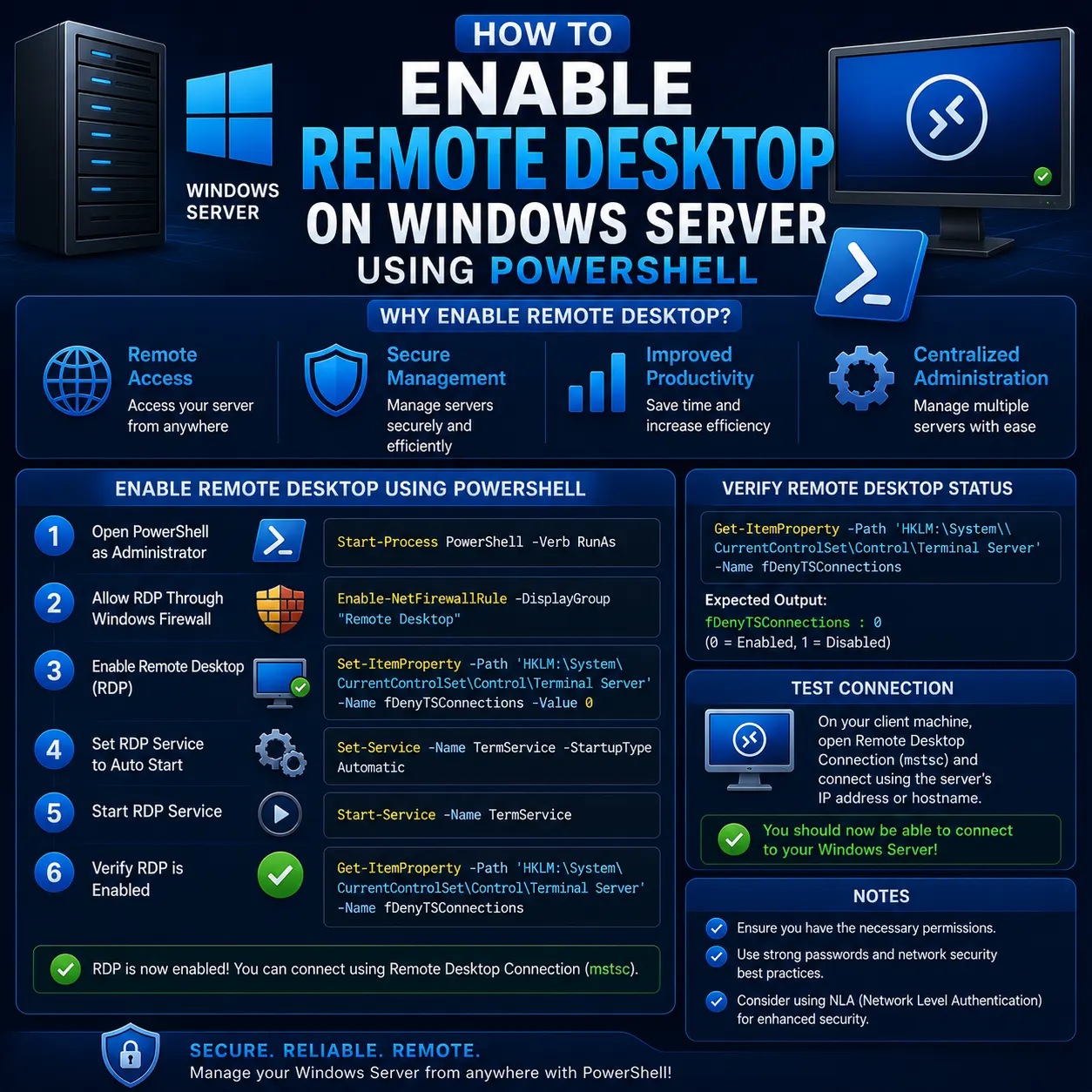

How to Enable Remote Desktop on Windows Server Using PowerShell

Start by launching PowerShell with elevated privileges. This is crucial because modifying registry keys and firewall rules requires administrator access.

Right-click the Start button and select Windows PowerShell (Admin) or Terminal (Admin) on newer Windows Server versions. If you're using Windows Server Core, PowerShell opens as administrator by default when you log in.

# Verify you're running as administrator
$currentPrincipal = New-Object Security.Principal.WindowsPrincipal([Security.Principal.WindowsIdentity]::GetCurrent())
$isAdmin = $currentPrincipal.IsInRole([Security.Principal.WindowsBuiltInRole]::Administrator)
if ($isAdmin) {
    Write-Host "Running as Administrator" -ForegroundColor Green
} else {
    Write-Host "ERROR: Not running as Administrator. Please restart PowerShell as Admin." -ForegroundColor Red
    exit
}

The core of enabling RDP involves setting the fDenyTSConnections registry value to 0. This tells Windows Server to accept Terminal Services connections.

# Enable RDP by modifying the registry
Set-ItemProperty -Path 'HKLM:\System\CurrentControlSet\Control\Terminal Server' -Name 'fDenyTSConnections' -Value 0

# Verify the change was applied
$rdpStatus = Get-ItemProperty -Path 'HKLM:\System\CurrentControlSet\Control\Terminal Server' -Name 'fDenyTSConnections'
if ($rdpStatus.fDenyTSConnections -eq 0) {
    Write-Host "RDP successfully enabled in registry" -ForegroundColor Green
} else {
    Write-Host "Failed to enable RDP in registry" -ForegroundColor Red
}

This registry modification is the fundamental change that allows Remote Desktop connections. The fDenyTSConnections key controls whether the Terminal Services component accepts incoming connections.

Even with RDP enabled in the registry, Windows Firewall blocks the connection by default. You need to enable the appropriate firewall rules to allow traffic on port 3389.

# Enable the Remote Desktop firewall rule group
Enable-NetFirewallRule -DisplayGroup "Remote Desktop"

# Verify firewall rules are enabled
$firewallRules = Get-NetFirewallRule -DisplayGroup "Remote Desktop" | Where-Object {$_.Enabled -eq 'True'}
if ($firewallRules.Count -gt 0) {
    Write-Host "Remote Desktop firewall rules enabled:" -ForegroundColor Green
    $firewallRules | Select-Object DisplayName, Enabled | Format-Table -AutoSize
} else {
    Write-Host "No Remote Desktop firewall rules are enabled" -ForegroundColor Red
}

The Enable-NetFirewallRule command activates all rules in the "Remote Desktop" group, which includes both TCP and UDP rules for port 3389. This is more reliable than enabling individual rules.

If you need more granular control, you can enable specific rules:

# Alternative: Enable specific RDP rules
Enable-NetFirewallRule -DisplayName "Remote Desktop - User Mode (TCP-In)"
Enable-NetFirewallRule -DisplayName "Remote Desktop - User Mode (UDP-In)"

Network Level Authentication (NLA) adds an extra security layer by requiring authentication before establishing a full RDP session. This is highly recommended for production environments.

# Enable Network Level Authentication
Set-ItemProperty -Path 'HKLM:\System\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp' -Name 'UserAuthentication' -Value 1

# Verify NLA is enabled
$nlaStatus = Get-ItemProperty -Path 'HKLM:\System\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp' -Name 'UserAuthentication'
if ($nlaStatus.UserAuthentication -eq 1) {
    Write-Host "Network Level Authentication enabled" -ForegroundColor Green
} else {
    Write-Host "Network Level Authentication disabled" -ForegroundColor Yellow
}

NLA requires clients to authenticate before consuming server resources, protecting against certain types of denial-of-service attacks. However, older RDP clients might not support NLA.

If you need to disable NLA for compatibility with legacy clients:

# Disable NLA (not recommended for production)
Set-ItemProperty -Path 'HKLM:\System\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp' -Name 'UserAuthentication' -Value 0

After modifying registry settings, you need to restart the Terminal Services to ensure all changes take effect immediately.

# Restart the Terminal Services service
Restart-Service -Name "TermService" -Force

# Wait for service to fully restart
Start-Sleep -Seconds 5

# Verify the service is running
$serviceStatus = Get-Service -Name "TermService"
if ($serviceStatus.Status -eq "Running") {
    Write-Host "Terminal Services restarted successfully" -ForegroundColor Green
} else {
    Write-Host "Terminal Services failed to start. Status: $($serviceStatus.Status)" -ForegroundColor Red
}

The -Force parameter ensures the service stops even if there are active RDP sessions. This is necessary because the service might be in use.

Alternative approach if the service restart fails:

# Alternative: Stop and start manually
Stop-Service -Name "TermService" -Force
Start-Sleep -Seconds 3
Start-Service -Name "TermService"

# Check for any dependent services that might need restarting
Get-Service -Name "TermService" -DependentServices | Where-Object {$_.Status -ne "Running"} | Start-Service

Now test that RDP is working correctly both locally and from a remote machine. This comprehensive test ensures all components are functioning.

# Complete RDP status check function
function Test-RDPConfiguration {
    Write-Host "=== RDP Configuration Status ===" -ForegroundColor Cyan

    # Check registry setting
    $rdpEnabled = (Get-ItemProperty "HKLM:\System\CurrentControlSet\Control\Terminal Server").fDenyTSConnections -eq 0
    Write-Host "RDP Enabled in Registry: $rdpEnabled" -ForegroundColor $(if($rdpEnabled){'Green'}else{'Red'})

    # Check firewall rules
    $firewallEnabled = (Get-NetFirewallRule -DisplayGroup "Remote Desktop" | Where-Object {$_.Enabled -eq 'True'}).Count -gt 0
    Write-Host "Firewall Rules Enabled: $firewallEnabled" -ForegroundColor $(if($firewallEnabled){'Green'}else{'Red'})

    # Check NLA status
    $nlaEnabled = (Get-ItemProperty "HKLM:\System\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp").UserAuthentication -eq 1
    Write-Host "Network Level Authentication: $nlaEnabled" -ForegroundColor $(if($nlaEnabled){'Green'}else{'Yellow'})

    # Check Terminal Services
    $serviceRunning = (Get-Service -Name "TermService").Status -eq "Running"
    Write-Host "Terminal Services Running: $serviceRunning" -ForegroundColor $(if($serviceRunning){'Green'}else{'Red'})

    # Check listening port
    $portListening = Get-NetTCPConnection -LocalPort 3389 -State Listen -ErrorAction SilentlyContinue
    Write-Host "Port 3389 Listening: $($portListening -ne $null)" -ForegroundColor $(if($portListening){'Green'}else{'Red'})

    # Get server IP for connection testing
    $serverIP = (Get-NetIPAddress -AddressFamily IPv4 | Where-Object {$_.IPAddress -notlike "127.*" -and $_.IPAddress -notlike "169.254.*"} | Select-Object -First 1).IPAddress
    Write-Host "Server IP Address: $serverIP" -ForegroundColor White

    Write-Host "=== Test Connection Command ===" -ForegroundColor Cyan
    Write-Host "From another machine, run: mstsc /v:$serverIP" -ForegroundColor Yellow
}

# Run the comprehensive test
Test-RDPConfiguration

This function provides a complete overview of your RDP configuration and identifies any remaining issues.

To test from a remote Windows machine:

# Test RDP connectivity from remote machine
$serverIP = "YOUR_SERVER_IP"
Test-NetConnection -ComputerName $serverIP -Port 3389

# Or use telnet for basic connectivity
# telnet $serverIP 3389

If you need to enable RDP on multiple remote servers, you can use PowerShell remoting to execute the commands remotely. This is particularly useful for managing Server Core installations.

First, ensure PowerShell remoting is enabled on the target server:

# Enable PowerShell remoting on the target server (run locally on target)
Enable-PSRemoting -Force
Set-Item WSMan:\localhost\Client\TrustedHosts -Value "*" -Force  # For non-domain environments

Then execute the RDP enablement remotely:

# Define target server and credentials
$RemoteComputer = "SERVER-NAME-OR-IP"
$Credential = Get-Credential -Message "Enter credentials for $RemoteComputer"

# Execute RDP enablement on remote server
Invoke-Command -ComputerName $RemoteComputer -Credential $Credential -ScriptBlock {
    # Enable RDP
    Set-ItemProperty -Path 'HKLM:\System\CurrentControlSet\Control\Terminal Server' -Name 'fDenyTSConnections' -Value 0

    # Enable firewall rules
    Enable-NetFirewallRule -DisplayGroup "Remote Desktop"

    # Enable NLA
    Set-ItemProperty -Path 'HKLM:\System\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp' -Name 'UserAuthentication' -Value 1

    # Restart Terminal Services
    Restart-Service -Name "TermService" -Force

    # Return status
    $rdpStatus = (Get-ItemProperty "HKLM:\System\CurrentControlSet\Control\Terminal Server").fDenyTSConnections -eq 0
    $serviceStatus = (Get-Service -Name "TermService").Status

    return @{
        ComputerName = $env:COMPUTERNAME
        RDPEnabled = $rdpStatus
        ServiceStatus = $serviceStatus
        Timestamp = Get-Date
    }
}

# Verify the remote configuration
Write-Host "Remote RDP configuration completed" -ForegroundColor Green

For multiple servers, you can use a loop:

# Enable RDP on multiple servers
$servers = @("Server1", "Server2", "Server3")
$credential = Get-Credential

foreach ($server in $servers) {
    try {
        Write-Host "Configuring RDP on $server..." -ForegroundColor Yellow
        $result = Invoke-Command -ComputerName $server -Credential $credential -ScriptBlock {
            Set-ItemProperty -Path 'HKLM:\System\CurrentControlSet\Control\Terminal Server' -Name 'fDenyTSConnections' -Value 0
            Enable-NetFirewallRule -DisplayGroup "Remote Desktop"
            Restart-Service -Name "TermService" -Force
            return "Success"
        }
        Write-Host "$server: $result" -ForegroundColor Green
    }
    catch {
        Write-Host "$server: Failed - $($_.Exception.Message)" -ForegroundColor Red
    }
}

Create a comprehensive PowerShell script that you can reuse across different Windows Server installations. This script includes error handling, logging, and verification.

# Save this as Enable-RDP.ps1
param(
    [string]$ComputerName = "localhost",
    [switch]$DisableNLA,
    [switch]$LogToFile
)

function Write-Log {
    param([string]$Message, [string]$Level = "INFO")
    $timestamp = Get-Date -Format "yyyy-MM-dd HH:mm:ss"
    $logMessage = "[$timestamp] [$Level] $Message"

    switch ($Level) {
        "ERROR" { Write-Host $logMessage -ForegroundColor Red }
        "WARNING" { Write-Host $logMessage -ForegroundColor Yellow }
        "SUCCESS" { Write-Host $logMessage -ForegroundColor Green }
        default { Write-Host $logMessage -ForegroundColor White }
    }

    if ($LogToFile) {
        $logMessage | Out-File -FilePath "RDP-Enable-$(Get-Date -Format 'yyyyMMdd').log" -Append
    }
}

function Enable-RemoteDesktop {
    param([string]$Computer)

    try {
        Write-Log "Starting RDP enablement on $Computer"

        # Check if running as administrator
        $currentPrincipal = New-Object Security.Principal.WindowsPrincipal([Security.Principal.WindowsIdentity]::GetCurrent())
        if (-not $currentPrincipal.IsInRole([Security.Principal.WindowsBuiltInRole]::Administrator)) {
            throw "Script must be run as Administrator"
        }

        # Enable RDP in registry
        Write-Log "Enabling RDP in registry..."
        Set-ItemProperty -Path 'HKLM:\System\CurrentControlSet\Control\Terminal Server' -Name 'fDenyTSConnections' -Value 0

        # Enable firewall rules
        Write-Log "Configuring firewall rules..."
        Enable-NetFirewallRule -DisplayGroup "Remote Desktop"

        # Configure NLA
        if ($DisableNLA) {
            Write-Log "Disabling Network Level Authentication..." "WARNING"
            Set-ItemProperty -Path 'HKLM:\System\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp' -Name 'UserAuthentication' -Value 0
        } else {
            Write-Log "Enabling Network Level Authentication..."
            Set-ItemProperty -Path 'HKLM:\System\CurrentControlSet\Control\Terminal Server\WinStations\RDP-Tcp' -Name 'UserAuthentication' -Value 1
        }

        # Restart Terminal Services
        Write-Log "Restarting Terminal Services..."
        Restart-Service -Name "TermService" -Force
        Start-Sleep -Seconds 5

        # Verify configuration
        Write-Log "Verifying configuration..."
        $rdpEnabled = (Get-ItemProperty "HKLM:\System\CurrentControlSet\Control\Terminal Server").fDenyTSConnections -eq 0
        $serviceRunning = (Get-Service -Name "TermService").Status -eq "Running"
        $firewallEnabled = (Get-NetFirewallRule -DisplayGroup "Remote Desktop" | Where-Object {$_.Enabled -eq 'True'}).Count -gt 0

        if ($rdpEnabled -and $serviceRunning -and $firewallEnabled) {
            Write-Log "RDP successfully enabled on $Computer" "SUCCESS"

            # Get server IP
            $serverIP = (Get-NetIPAddress -AddressFamily IPv4 | Where-Object {$_.IPAddress -notlike "127.*" -and $_.IPAddress -notlike "169.254.*"} | Select-Object -First 1).IPAddress
            Write-Log "Connect using: mstsc /v:$serverIP" "SUCCESS"

            return $true
        } else {
            throw "RDP enablement verification failed"
        }
    }
    catch {
        Write-Log "Error enabling RDP: $($_.Exception.Message)" "ERROR"
        return $false
    }
}

# Execute the function
$result = Enable-RemoteDesktop -Computer $ComputerName

if ($result) {
    Write-Log "RDP enablement completed successfully" "SUCCESS"
} else {
    Write-Log "RDP enablement failed" "ERROR"
    exit 1
}

Usage examples:

# Basic usage
.\Enable-RDP.ps1

# Disable NLA for legacy client compatibility
.\Enable-RDP.ps1 -DisableNLA

# Enable logging to file
.\Enable-RDP.ps1 -LogToFile

# Combine options
.\Enable-RDP.ps1 -DisableNLA -LogToFile
